Atlas 12 E
Advanced Split Phase Hybrid Inverter
Grid-Tied • Backup • Off-Grid
Pure White

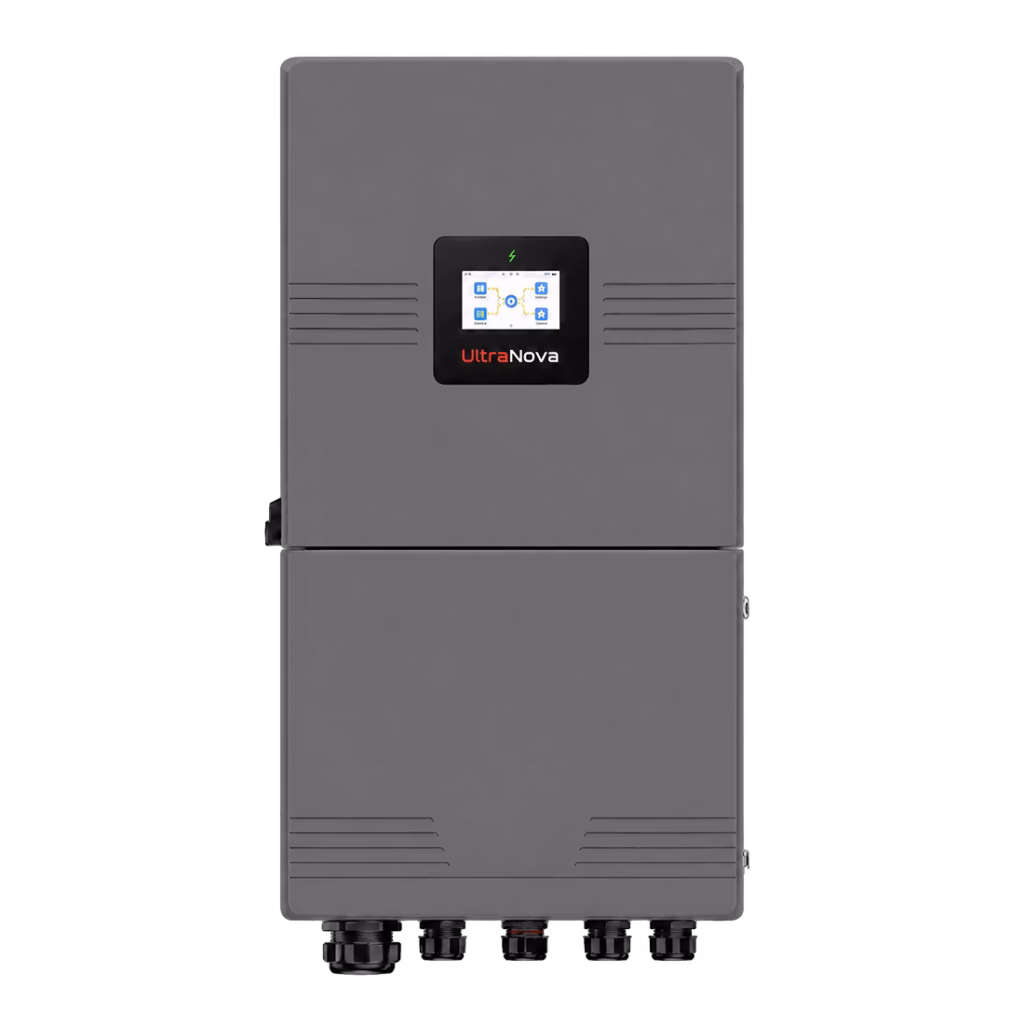

Space Gray
12 kW
Rated AC Power
15 kW
Max. Solar Input
10 kW
Backup Output
9 Units
Parallel Operation
Technical Specifications
PV Input
Max. Allowed PV Power (STC)
15 kW
Nominal Voltage Range
70-550VDC
Startup Voltage
90V
Max. Input Voltage
600V
Max. Input Current per MPPT
PV A: 30A; PV B/C: 22A
No. of MPP Trackers
3
No. of PV Strings per MPPT
2
Battery
Battery Chemistry
Lithium / Sodium
Nominal DC Voltage
48V
Operating Voltage Range
40-64V
Max. Charge/Discharge Current
210A
Charging Efficiency
Max: 93.4%
Communication
CANBus & RS485
Sodium-ion Ready
Yes
Output Data (AC)
Rated Output Power
12 kW
Peak Output Power
20 kVA (1s)
Nominal AC Voltage
120/240V, 120/208V
Grid Frequency
50 / 60Hz
Rated Output Current
50A
Grid Passthrough Current
100A
Backup – Off-Grid (AC)
Rated Voltage (L-N, L-L)
120/240V, 120/208V
Rated Frequency
50 / 60Hz
Max. Battery Output Power
12 kW (50A @240V)
Peak Power (60s, off -Grid)
20,000VA @ 240V
Backup Transfer Time
Typical: 10ms
Generator Input
Supported
General
Dimensions (H x W x D)
790 × 420 × 255 mm
Weight
44 kg
Enclosure
IP65 / NEMA 3R
Ambient Temperature
-25-60°C, > 45°C Derating
Relative Humidity
0~100%
Max. Operation Altitude
4,000m
Cooling Methord
Smart Cooling Fan
