Vault 16
16kWh LiFePO4 Energy Storage Battery
Safe • Reliable • Long Cycle Life
The UltraNova Vault 16 is a high-performance wall-mounted LiFeP04 battery designed for residential and small commercial energy storage systems.

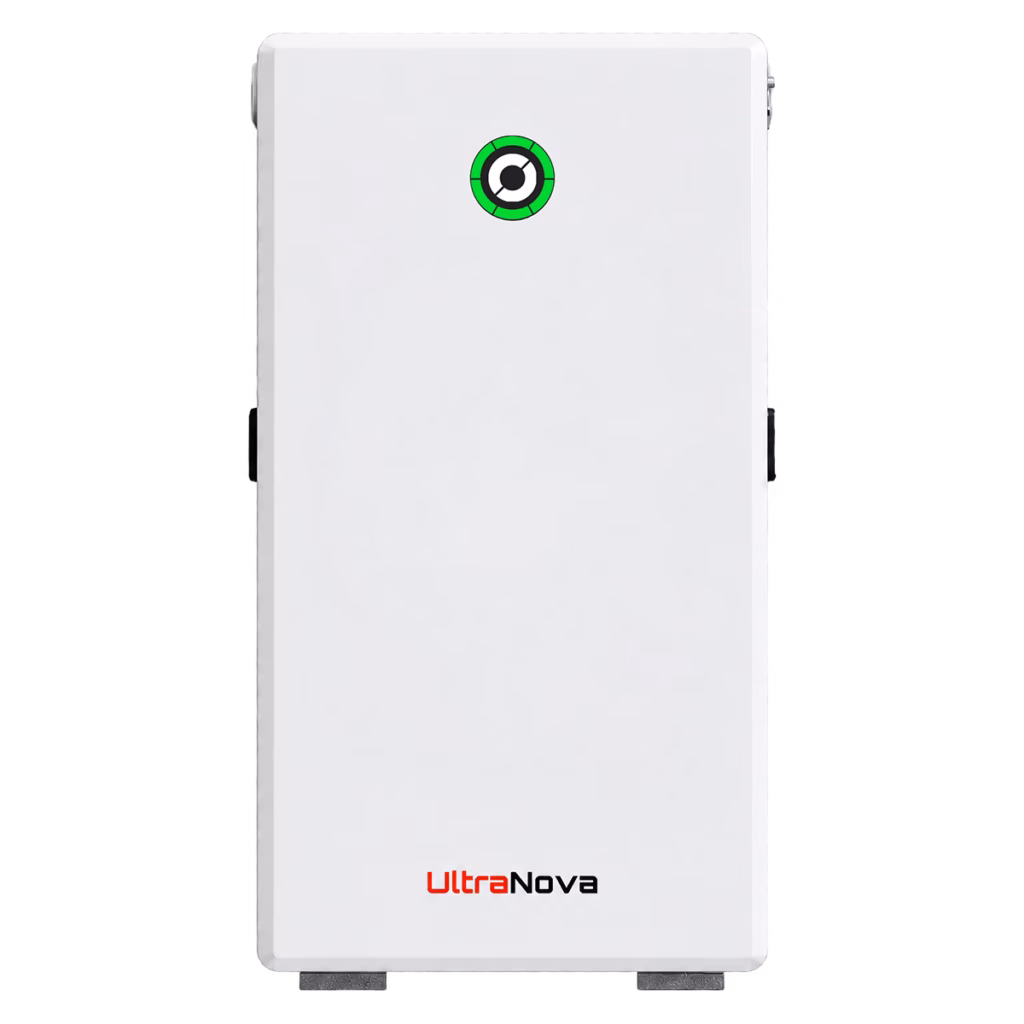

Pure White

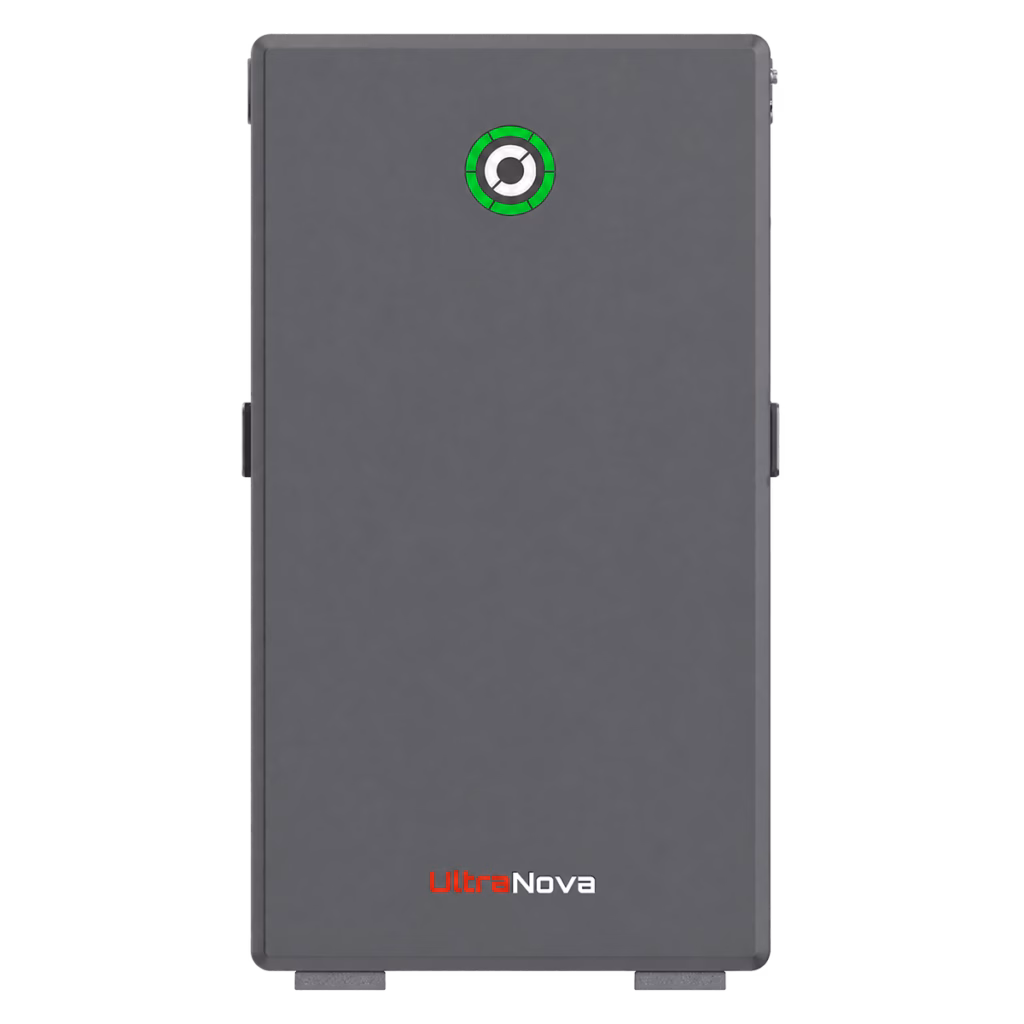

Space Gray
16 kWh
Rated Capacity
51.2 V
Nominal Voltage
314 Ah
Nominal Capacity
8,000
Cycles Life
Technical Specifications
Battery Specifications
Battery Chemistry
LiFePO4
Nominal Energy
16 kWh
Nominal Capacity
314 Ah
Nominal Voltage
51.2 V
Operating Voltage Range
44.8~58.4 V
Depth of Discharge (DoD)
≥ 95%
Usable Energy
15.2 kWh
Cycle Life
8,000 cycles @ 80%DOD
Performance
Rated Charge Current
100A
Rated Discharge Current
100A
Max. Charge Current
200A
Max. Discharge Current
200A
Charge Temperature
-20~55°C (-4° F~131° F)
Discharge Temperature
–20~60°C (-4° F~140° F)
Storage Temperature
20°C~45°C (68 ° F~113 ° F)
Round Trip Efficiency
≥ 95%
Communication & Scalability
Communication Interface
CAN / RS485 / Modbus
Compatible Protocol
Pylontech Protocol
Firmware Upgrade
Remote Upgrade
Address Setting
Automatic ID assignment
Monitoring
Remote monitoring
Scalability
Up to 16 units in parallel
General
Dimensions (H x W x D)
980*543*178mm
Weight
127.8kg
Enclosure
IP65
Installation
Wall-Mounted
Altitude
≤ 3000 m
Humidity
65+20%RH
Warranty & Certifications
Product Warranty
10 Years
Certifications
UL9540, UL9540A, UL1973,
IEC62619, UN38.3, MSDS
System Integration
DESIGNED FOR
UltraNova Atlas/Helios Series Hybrid Inverters
Seamless integration delivers smarter management, higher efficiency and greater reliability.
LocalCell-Level Temperature Monitoring
Real-time monitoring of individual cell temperature for enhanced safety and reliability.
Remote BMS Firmware Updates
Update battery BMS firmware remotely through UltraNova inverter platform.
Closed-Loop Communication
Reliable CAN/RS485 communication ensures intelligent battery management.
Third-Party Inverter Compatibility
Supports selected 48V hybrid inverter platforms*
